• BDS 6" Suspension Lift Kit - 2011-2016 Ford F250/F350 4WD

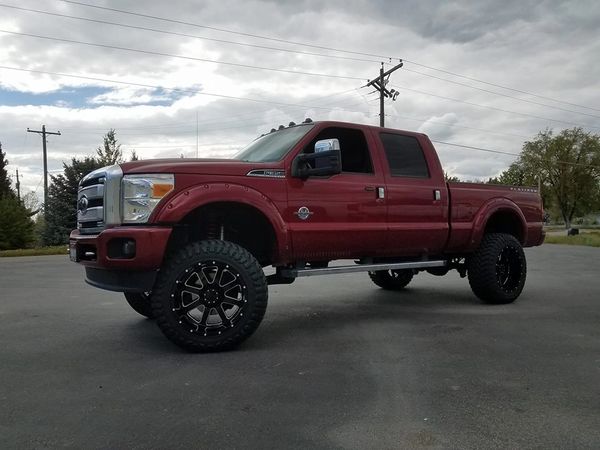

    BDS Suspension 6" Suspension Lift Kit for 2011-16 Ford F250/F350 4WD pickup trucks.

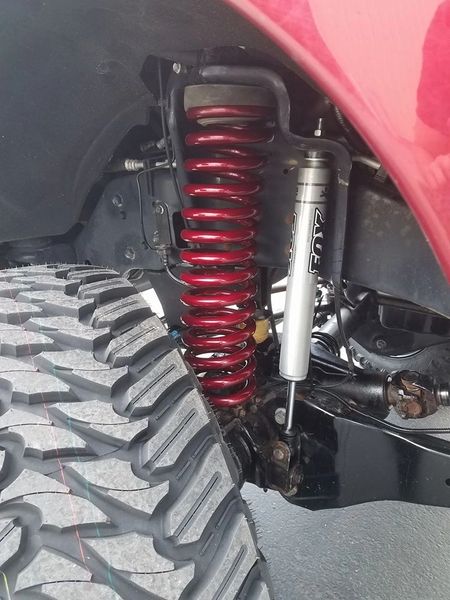

    This kit centered around two Pro Ride coil springs. The box kit includes two new radius arm drop brackets to put the stock radius arm back at factory angle which will maintain your stock driving characteristics.

    The kit also comes with anti-sway bar drop brackets, a dropped pitman arm for steering angle correction, a track bar relocation bracket to properly center your axle and bump stop extension.

    The rear is lifted via new Glide Ride Leaf Springs.

    Choose between gas and diesel configurations as well as plenty of upgrades and acessories when customizing your kit..

    Important Kit Notes

    • 1. Front exhaust modification may be required to clear front drive shaft (gas only).
    • 2. If equipped with 2-piece driveshaft, a driveshaft alignment kit may be required.
    • 3. Although extremely rare, front driveline vibration may occur.
    • 4. If equipped with rear sway bar, #123009 required.
    • 5. U-bolts will not work on dually.
    • BDS leaf springs are not intended for use beyond the truck's maximum payload capacity. Trucks equipped with overload springs will only have the capacity of a non-overload equipped truck. If heavy payload use is desired, supplemental rear air bags are recommended.
